CICERO-3LDI-s1 Product Overview

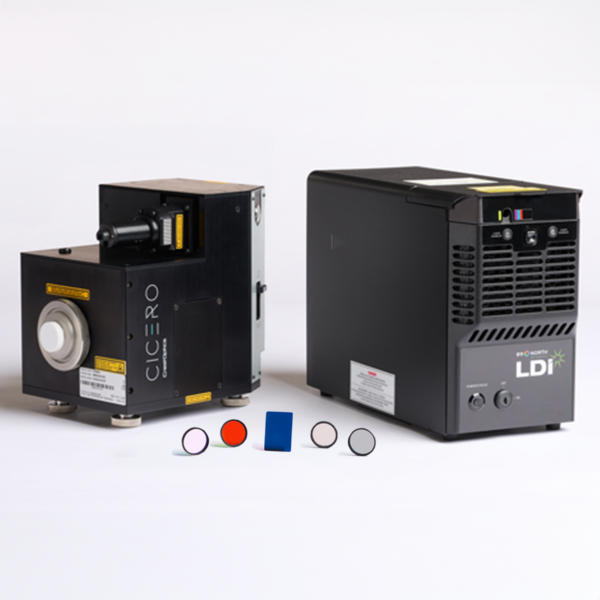

Choose one of 89 North’s CICERO-LDI packages to transform your standard fluorescence microscope into a user-friendly high resolution confocal system. These packages feature CrestOptics CICERO spinning disk confocal unit, an 89 North LDI laser, and matched filters from Chroma Technology.

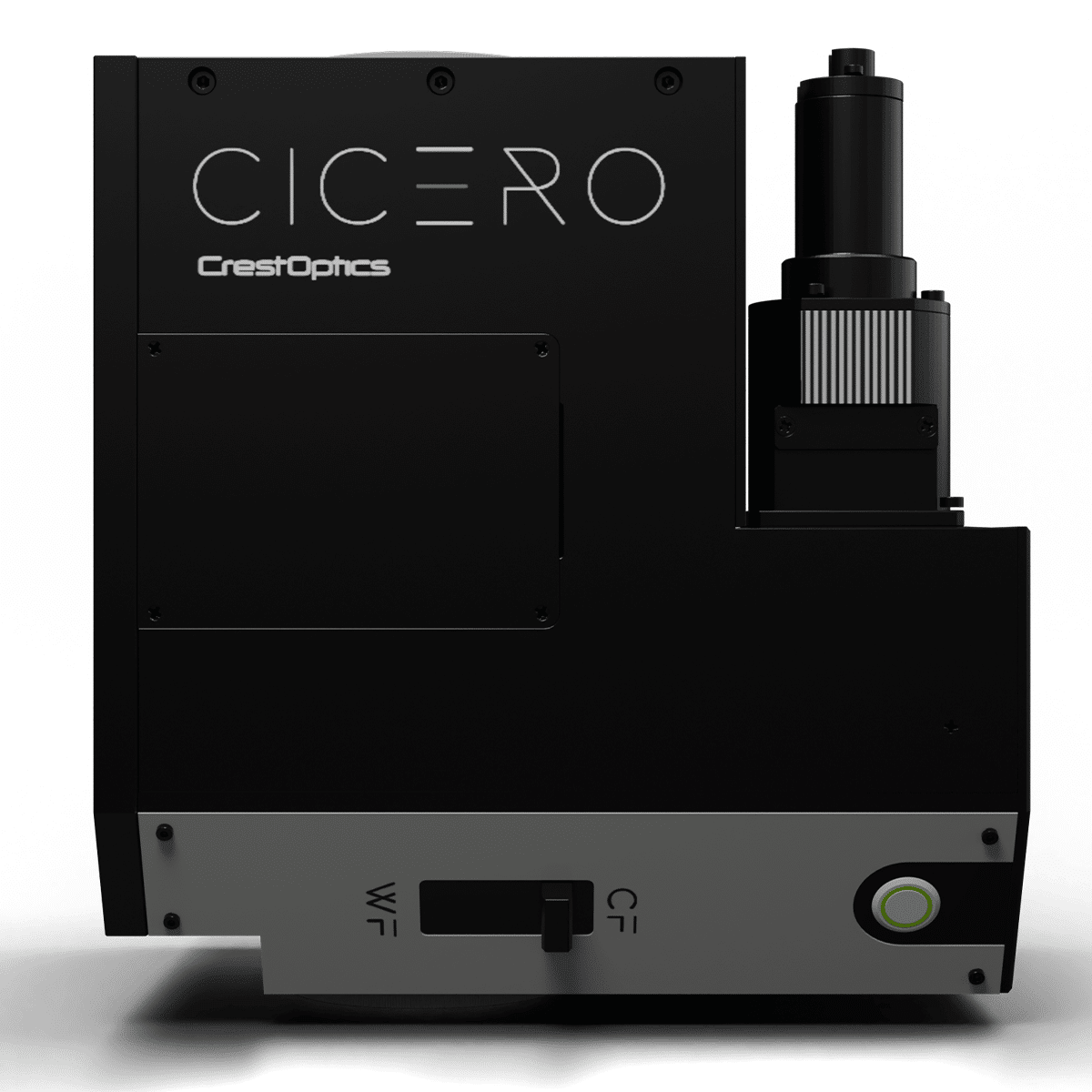

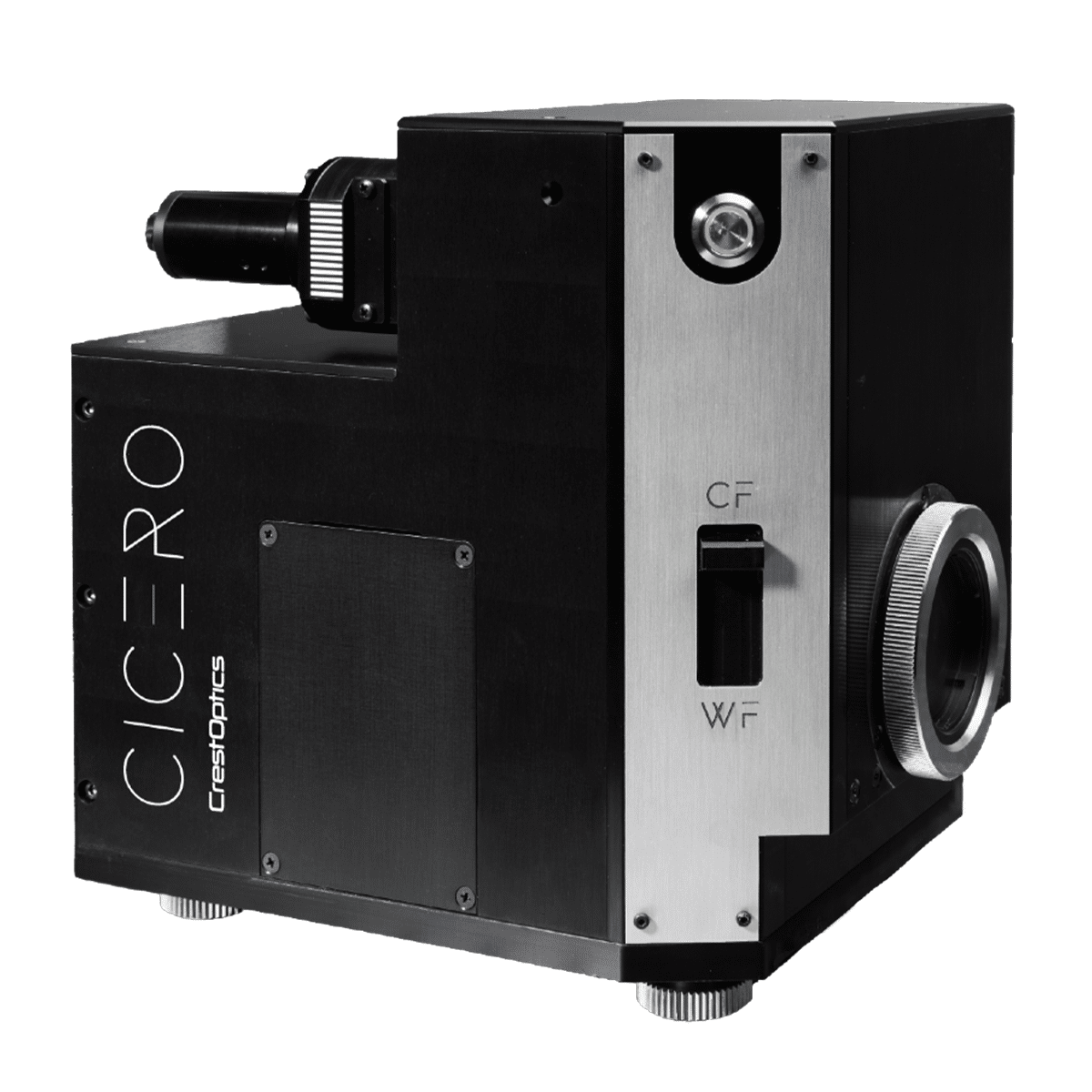

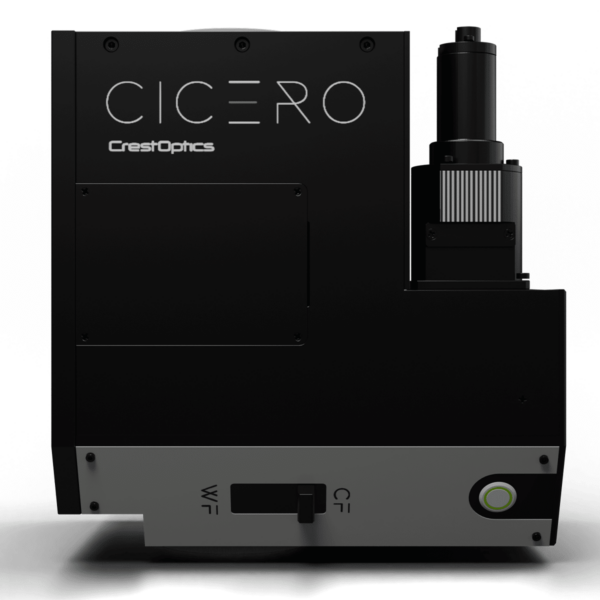

The CICERO is a high-performance and compact unit with both confocal and widefield modes. This package includes 3 lasers: 405nm, 470nm, 640nm, and filters: triple bandpass set (excitation, dichroic, and emission filters) plus 3 single band emitters to eliminate crosstalk

For more details, see specifications below or
>> Find Out More

Packages CICERO-3LDI-s1
89 North Lasers (nm) 405 / 470 / 640

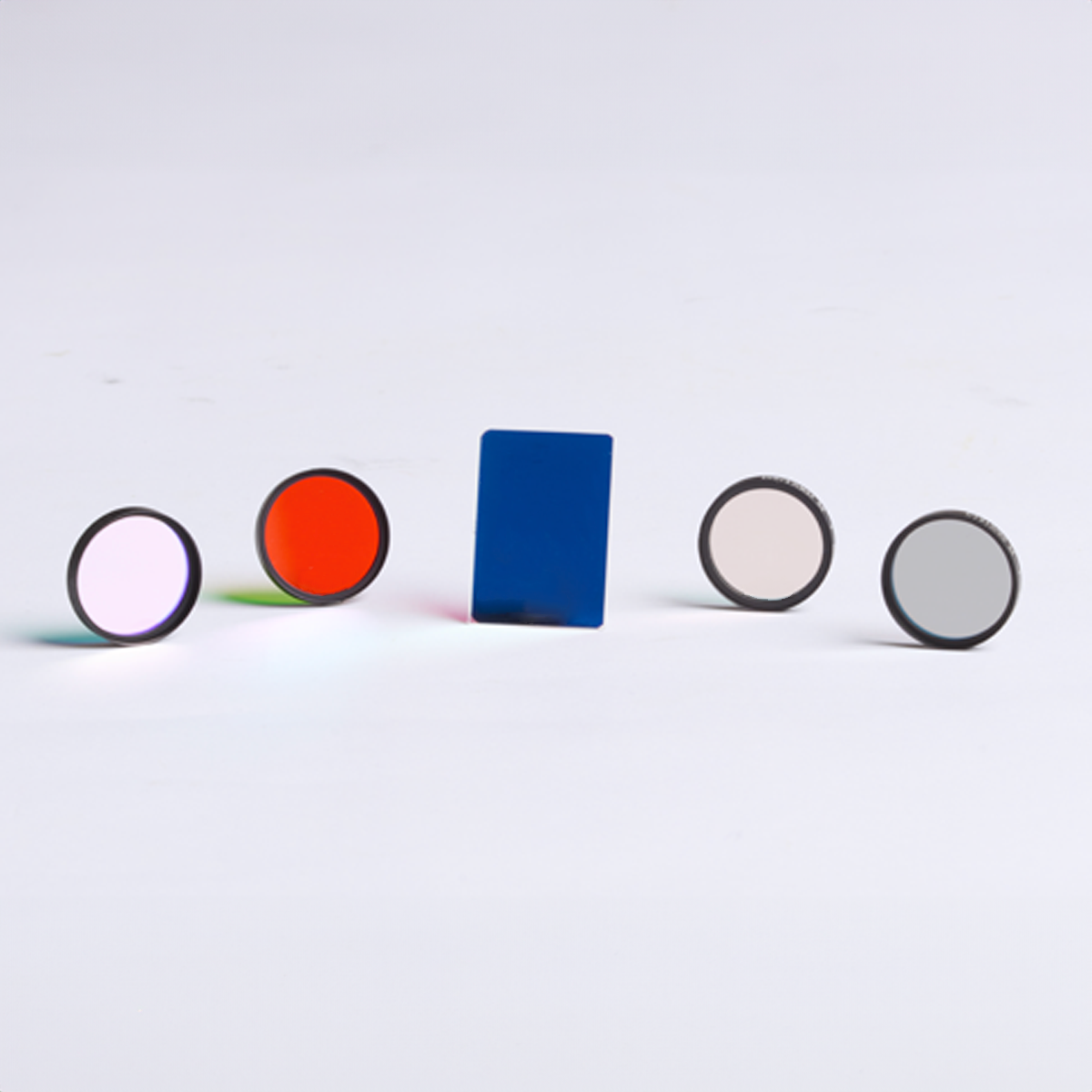

Chroma Filters Triple bandpass excitation & dichroic set
Triple bandpass set for excitation, dichroic, and emission
Single band emission filters: 440/40, 510/50, 700/75
FOV up to 22mm
Bypass Mode Yes (Manual)
Camera C-mount camera
Resolution Lateral (FWHM): ~230nm (100x NA 1.45)
Axial (FWHM): ~600nm (100x NA 1.45)
Temporal: 100 fps, full frame (camera limited)
Software μManager, VisiView®, Volocity, CellSens, SDK available for integration, TTL control and serial conversion available
Configuration Inverted or Upright Microscope
  • Compact spinning disk confocal unit
  • Manual bypass mode (widefield)
  • Single disk with 50um pinholes
  • 5-position emission filter wheel

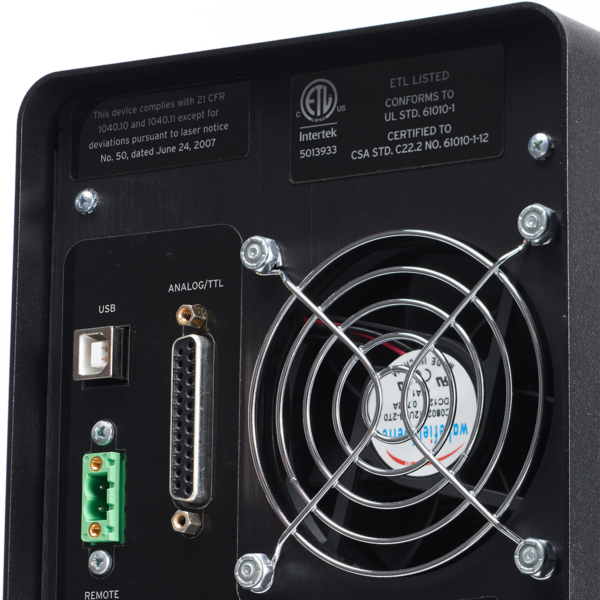

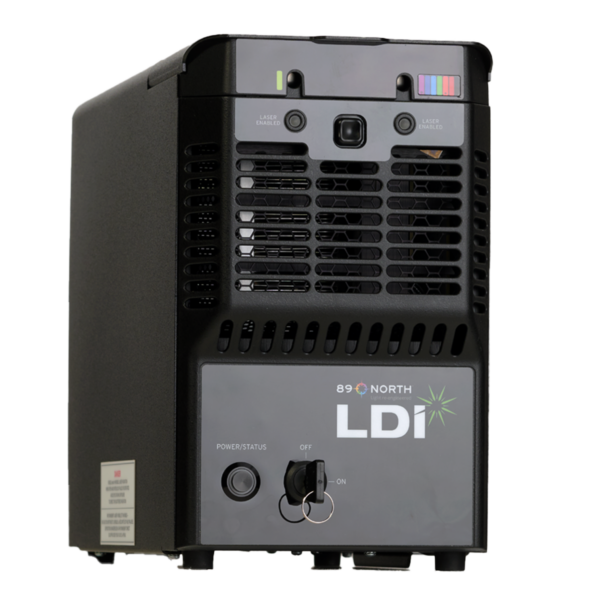

  • LDI – Laser Diode Illuminator with matching Chroma filter set
  • Optical fibers & connectors with fiber bend box
  • C-mount adapters to microscope and camera
  • Field lens (matched to microscope)

Life sciences, metrology, and material sciences are among the disciplines that increasingly rely on high-speed, high-contrast, high-resolution imaging. Almost all research benefits from 3D confocal images on a daily basis.

  • High Content Screening
  • Digital Pathology
  • Spatial Biology
  • Material Science

Downloadable Documents

Please find links below to relevant downloads for our products.

Our Products are Used in the Nation's Most Advanced Labs

Our products are used in some of the nation’s most advanced laboratories. Here are a few.


Request A Quote

Contact us for a free quote. Need something bespoke? We can work with you to configure a specialized range of laser lines and options.
