Cairn

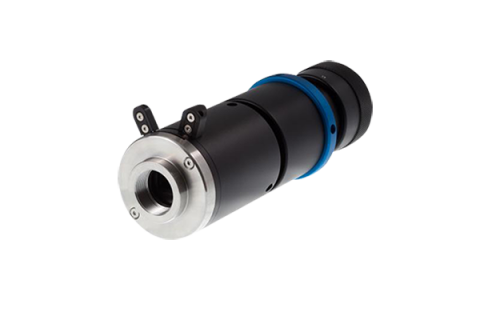

OptoMask OC-LS

Large aperture adjustable field mask improves time resolution with frame transfer cameras

  • C-mount to C-mount device with precise aperture control
  • Enables any size region to be selected, centered on the chip

Share (0)
Total: 0 Total: 0 Total: 0 Total: 0
Categories: , , , , , , , , , , ,

Many applications require the aperture to be at or near the center of the microscope image plane. The OptoMask OC-LS limits the field of view to a region of interest centered on the camera sensor.

OptoMask OC LS has been specifically designed to enable the use of Optically Centered (OC) crop mode on Andor 897 and 888 sensors and the Photometrics Delta. This device uses a single achromatic lens to minimize losses and incorporates a quick and convenient mechanism for adjusting the mask size from full chip to a few pixels with a single control. Preset markings are included to set useful frame sizes for both 1024 and 512 sensors.

Standard spectra range 450 – 900 nm
Dimensions 201 mm x 60 mm
Camera size supported Up to 22 mm diagonal
ROI allowed Any size, centered on the chip
Precise aperture control Enables fast kinetic mode with frame-transfer cameras including Andor models 897 and 888 and the Photometrics Delta
Supports large sensors up to 22 mm diagonal Large field of view, including sCMOS detectors
High quality triplet lenses Maximum throughput with minimal aberrations
  • Fast calcium and voltage-sensitive dye measurements
  • Kinetic studies using widefield fluorescence
  • Super Resolution PALM / STORM / SIM
  • TIRF
  • Single point detection using a photomultiplier or photodiode
