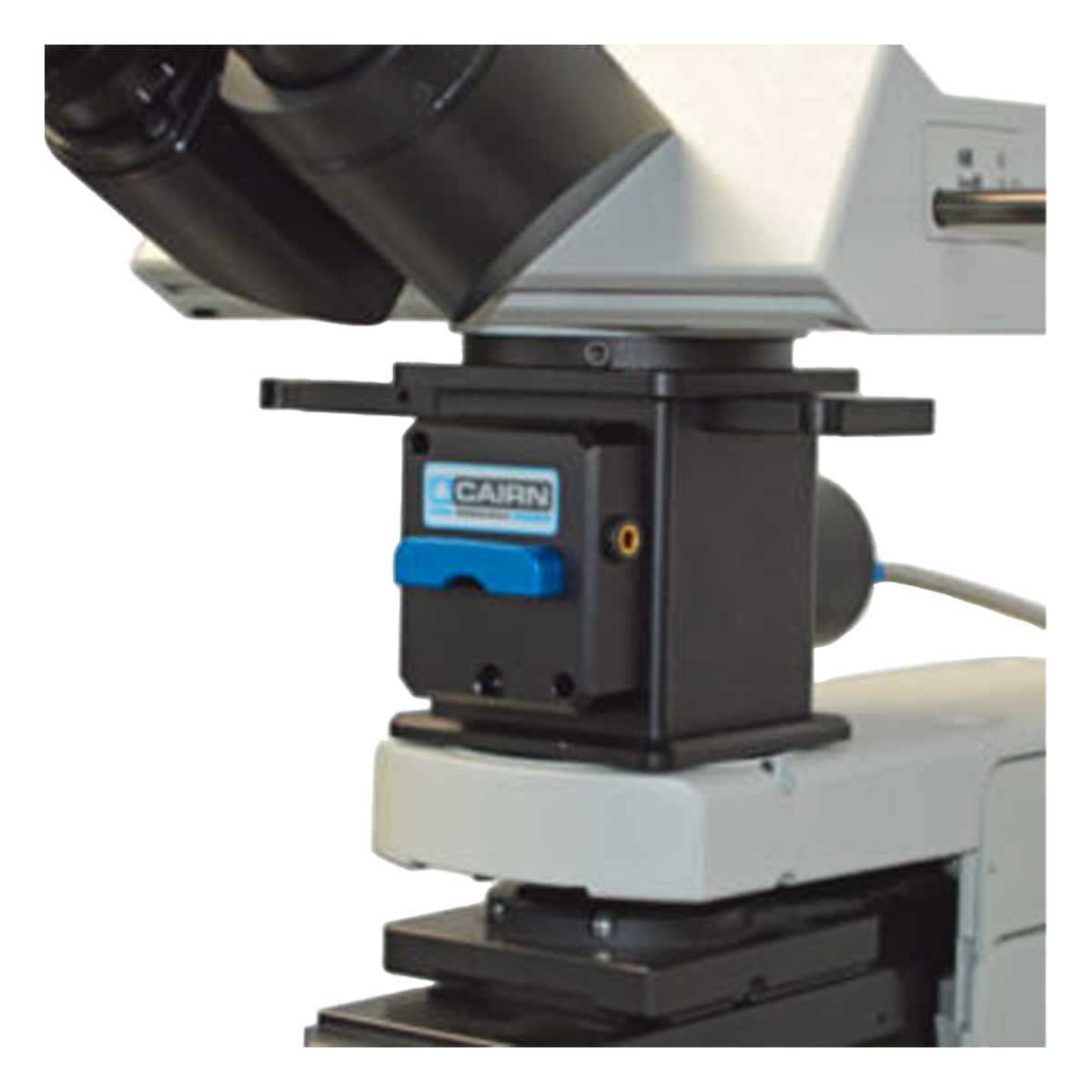

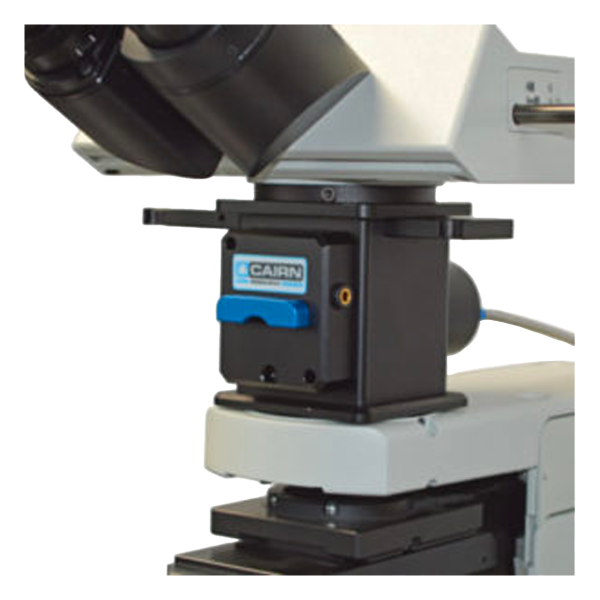

Infinity Cube

Specifically designed for Optogenetics, flash photolysis, FRAP and widefield fluorescence, the Cairn Infinity Cube gives scientists direct access to the infinity-space of commercial upright microscopes and macroscopes. Features include:

• Infinity space cube holder
• Adjustable mirror mount
• Interlock safety switch

Share (0)
Total: 0 Total: 0 Total: 0 Total: 0
Categories: , , , , ,

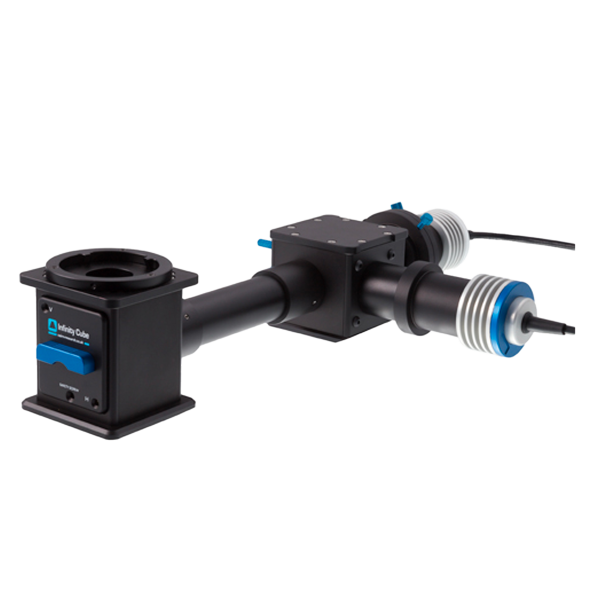

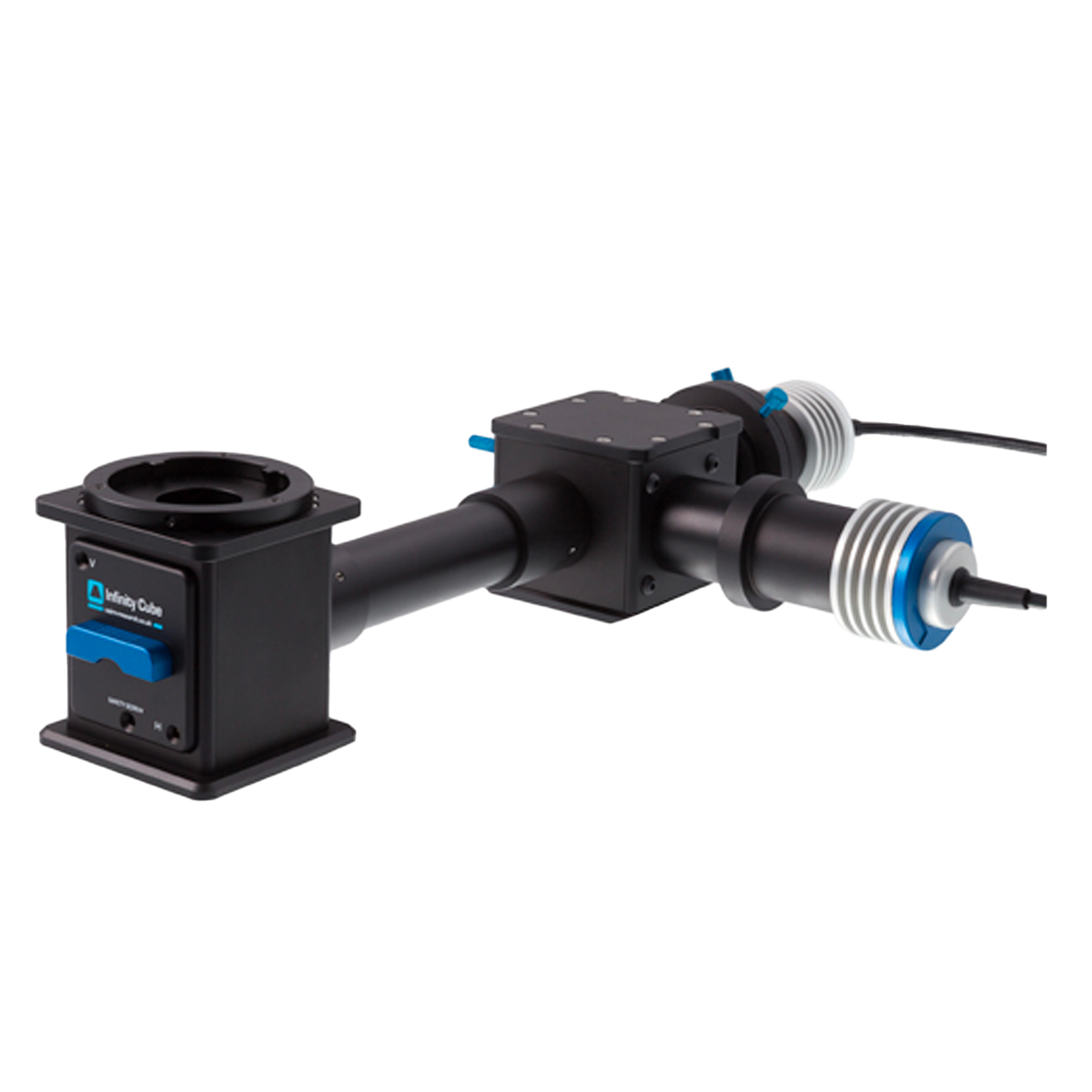

The Cairn Infinity Cube allows for the efficient and flexible coupling of multiple independent light sources with each optimised for different field of view, wavelength, polarisation state and / or other property. Unlike competing systems the principal, on-axis, filter cube can be precisely and simply steered in-situ delivering the photons to exactly where they are needed. Illumination areas can range from full field to controllable areas down to several microns diameter using LEDs and diffraction limited spots using lasers.

We can also use the Infinity Cube as the basis of a modular fluorescence microscope for bespoke applications; please contact our Sales team for details.

  • Independent iris, rectangular, or pin hole field stops for selective illumination / phototoxicity reduction
  • Interchangeable magnetic filter cubes
  • OptoFlip option for rapid bypass
  • Laser safety interlocks and bespoke optics for singlemode, multimode fibers and direct laser coupling
  • Works with our MultiPort adapters for four or more independent illuminators
  • Emission filter slider
  • Rotating polarizer option
  • Optogenetics – halo and channel rhodopsin
  • FRAP – Fluorescence Recovery After Photobleaching
  • Flash photolysis
  • Widefield fluorescence especially FRET / calcium recordings
  • Integration into modular fluorescence microscopes
