LDI-4-488 SF Product Overview

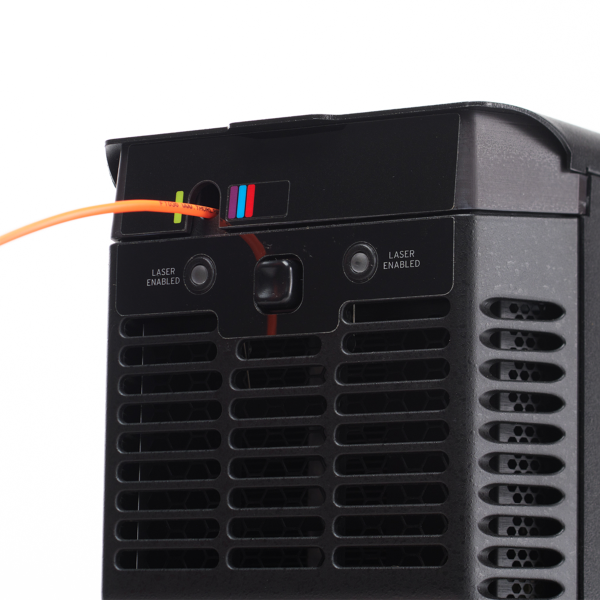

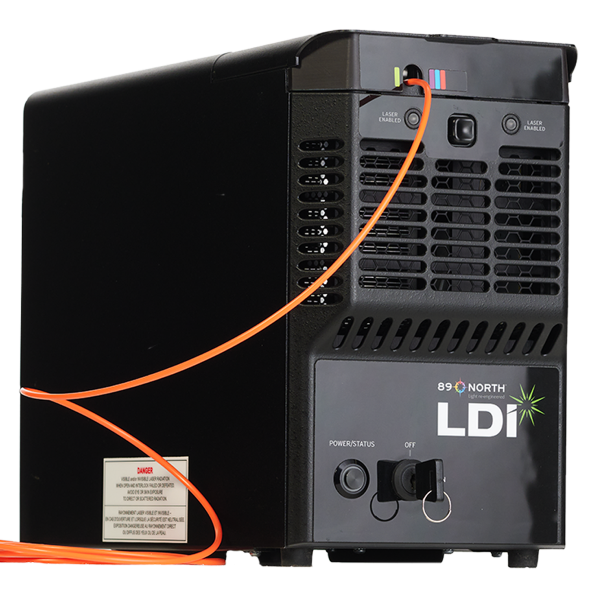

The LDI-4-488 SF laser diode illuminator is a user inspired version of the LDI-4. Many researchers were asking for a laser launch that covered only the 4 basic lines: DAPI, FITC, TRITC, Cy5. and specific 488nm laser 89 North listened and we responded. The LDI-4-488 SF also features single 100 micron fiber output for applications such as TIRF. The LDI-4-488 SF has only the lines you asked for. While we reduced the number of lines inside the box, we made no compromises on the quality and performance you’ve come to expect from 89 North. This unit is also available with a 470nm laser for FITC/GFP and with a 577nm laser for TRITC/mCherry…or both!
Have questions about the specifications or capabilities? >> Ask an Engineer
Specifications
Find specifications for our LDI-4-488 SF line of products below. Note that we can also work with you to provide solutions for your unique needs.
| Source Type | Laser Diodes | |||
| Lifetime | 20,000 hrs – 2 year warranty | |||
| Laser Line (nm) | 405 | 488 | 555 | 640 |
| Continuous Wave Stability2 | < 2% | < 2% | < 2% | < 2% |
| Optical Power Min (mW)1 | 150 | 200 | 150 | 200 |
| Max Rise Time1 | < 10μs | < 10μs | < 2ms | < 10μs |
| Max On/Off Frequency (Hz)3 | > 1000 | > 1000 | 100 | > 1000 |
| Output Options | optical fiber 4 | |||
| Control Options | TTL (>2.3 V) Analog (0–5 V) USB–DSP (virtual COM port) – SDK available upon request |
|||
| Safety | Interlocked housing Safety interlock Key interlock IEC 60825 compliant |
|||
| Dimensions | 12.5” x 9.2” x 5.75”, 318mm x 234mm x 146mm | |||
| Weight | ~9 lbs | |||
| Operating Temperature | 15-30 ̊ C | |||
| Storage Temperature | -18-50 ̊ C | |||
| Humidity | < 80% non-condensing | |||
| Voltage | 90–220 V AC, 50–60 Hz | |||
| Fuse | None | |||
1. Measured at 100% intensity, 23°C ± 2°C
2. Standard Deviation relative to the mean power measurements, measured at 100%
intensity, 23°C ± 2°C
3. Measured at 100% intensity, 50% duty cycle
4. Recommended output fiber is 400 μm, 0.39 NA bifurcated fiber
Features
Find the unique features of our LDI-4-488 SF line up below.
| High output power | Shorter exposures Faster imaging Faster activation times in optogenetics and photoactivation experiments Faster bleaching times in FRAP experiments |
| Feedback controlled optical stability | Quantitative imaging, ideally suited for ratiometric imaging More repeatable optogenetics experiments |
| Up to 100:1 linear dynamic range | Ability to turn power down when needed and maintain stability and quantitative imaging |
| 4 lines | Covers most of the standard fluorescence probes (405 nm, 488 nm, 555 nm, 640 nm) |
| No user alignment | Easy to use and maintain |
| TTL and Analog control | No need for software specific drivers |
Scientific Applications & Techniques
Our LDI-4-488 SF light engines are used in some of the worlds most advanced laboratories in a wide range of applications and techniques. These include those listed below.
|
|
Downloadable Documents
Please find links below to relevant downloads for our products.
LDI-4-488 SF Frequently Asked Questions (FAQs)
Here are answers to some of the most frequently asked questions we receive. Not seeing what you are looking for? >> Ask our engineers
The key factors to consider are: wavelength, power, delivery, repeatability, and cost. 89 North can deliver on all factors.
There are many differences but the four most important are:
- Small fiber size. The LDI is available in 100um, 400um, or larger fibers.
- Linearity. The LDI is an extremely useful light source for quantitative imagine, with linearity tracked internally from 1% to 100%.
- Specificity. The wavelengths of light from the LDI are not broad in spectrum line an LED. They are highly specific, which is critical for fluorescent illumination.
- Stability. The LDI is a very stable light source, which enables both accuracy any precision of light measurements.
Virtually none. The LDI ships fully aligned, and requires no regular alignment or cleaning.
Many factors, like wavelength, stability, and maintenance are critical issues that are often overlooked. Don’t just pay attention to cost, as all lasers are not the same.
Absolutely! The LDI is extremely stable, and linear from 1% to 100%.
The LDI is about the size of a small desktop computer. The dimensions are 12.5” x 9.2” x 5.75”, 318mm x 234mm x 146mm. You can find more specifications in the table at the top of the page.
The single most important thing to remember when setting up any laser light source is safety. Always review all documentation carefully, and consult your institution’s laser safety officer with any questions.
LDI-4-488 SF Peer Reviewed in Scientific Publications
Our light engines are used in some of the most pioneering labs across the world. Here are some of the scientific citations we’ve received.
-
Kyle Newton
Lateral line ablation by ototoxic compounds results in distinct rheotaxis profiles in larval zebrafish.
-
Barth D. Grant
Large vesicle extrusions from C. elegans neurons are consumed and stimulated by glial-like phagocytosis activity of the neighboring cell.
-
Adriana San-Miguel
Endogenous DAF-16 spatiotemporal activity quantitatively predicts lifespan extension induced by dietary restriction.
-
Heidi Hehnly
Rab11 endosomes and Pericentrin coordinate centrosome movement during pre-abscission in vivo
